Bosch technology prevents unwanted intrusion into the port of Paracas

The ultra 7100i PTZ MIC IP cameras and the Intelligent Video Analytics system from Bosch Security Systems have made it possible to overcome the environmental challenges at the port terminal, as well as detecting and documenting attempted criminal activity.

A solid Video Surveillance & Monitoring Solution, based on the technology of Bosch Security Systems, Protects the Paracas Port Terminal, in Peru.

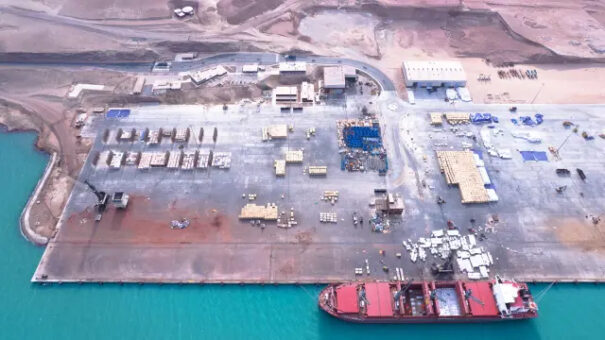

Cesar Rojas knows firsthand the importance of protecting his territory from intruders. He is the operations manager of the Port of Paracas, in Ica (Peru), where access by unauthorized persons is a constant concern.

According to the Report World Drug Policy (UNODC, 2022), almost the 90 percent of cocaine seized worldwide is trafficked in containers or by sea. In Puerto Paracas, the hot, windy weather and exposure to salinity present Cesar Rojas and his team with major challenges in preventing drug traffickers from entering prohibited areas.

They needed a very robust monitoring solution, that offered high-quality images and could withstand the elements.

The answer to these requirements was found in the PTZ MIC IP ultra 7100i cameras by Bosch Security Systems. Installed at 40 meters high made it possible to overcome environmental problems and effectively detect and document attempts at criminal activity. This is possible as they operate in harsh weather conditions, They provide crisp, reliable images despite vibrations and are able to be integrated into the existing video management system

"Given its location, Just 70 miles of an area known for drug trafficking, Our port must have great precautions in place to protect us from criminal activity.", explains César Rojas. Your security team needs full visibility into the 11 hectares that include red or sensitive spots.

Previous solutions showed smudges that moved, without giving the team the information and evidence they needed. The images looked sharp at first glance, But they became confusing when zooming in. Attempts to fix the problem were unsuccessful. Security breaches were also a concern, as previous PTZ cameras monitored the same area when motion was detected.

The team's initial idea was to place a radar pointing in one direction. If an intruder broke into a place, a PTZ camera would rotate and zoom in at that point. But the metal fence distorted the electromagnetic wave, which made this option unfeasible. Attempts were also made to install a bridge, But it also failed to stabilize the image.

Maintain port security standards

Cesar Rojas and his team were relieved to find that Bosch's technical solution overcame the problems and met the high safety standards set at the port. Despite being placed on poles 40 meters high, Images are crisp and reliable, even with regular wind gusts of up to 35 knots and in a high-salinity environment.

Specifically, have been mounted on some 10 Poles PTZ MIC IP Ultra 7100i camera with Intelligent Video Analytics (Vat). This solution provides 4K UHD resolution, Wind resistance up to 290 km/hour, 12x zoom and vibration-free control, with optical image stabilization.

The IVA system constantly monitors the area for movement and automatically tracks objects moving within the camera's range. This reduces the security breaches that the team faced in the past.

"We now have a single Bosch camera on a pole instead of three or four units as before. And our security breach has been successfully eliminated.", says César Rojas.

With its intelligent video analytics algorithm, High-performance video cameras support the team by detecting and classifying objects such as people and vehicles in their exact location based on coordinates and integrated with the RSA module of Genetec. They help generate accurate intrusion traceability by using PTZ sensor resources efficiently and automatically; and activate the corresponding safety protocols without distracting the operator.

This helps Cesar Rojas and his team fulfill their goal of ensuring that those on the ground have clearance and that those in the container area can be identified.

The use of technology improves control, minimizing the risk of omissions, especially in environments that require a high level of security, like ports, Industrial Plants or Major Facilities. While it doesn't completely replace the need for personnel and hardware, Optimize the resources used and support the team so they can do their job.
