Optimus expands its Nova system with a microphone desk with touch screen

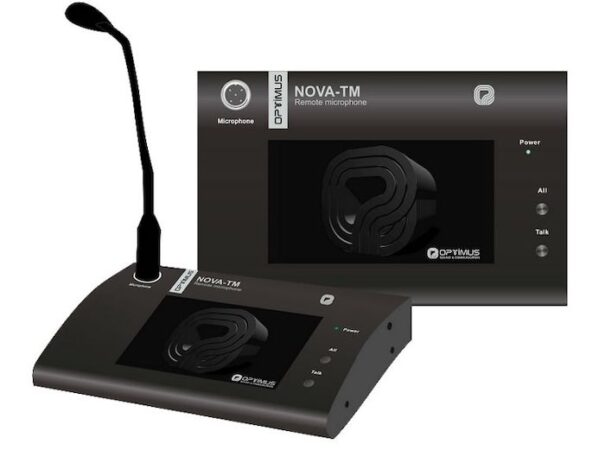

With the ability to define up to forty programmable keys, Nova-TM is the new microphone desk of Optimus for remote control of Nova-500 and 500S amplifiers.

The new microphone desk Nova-TM of Optimus incorporates a 7 color touch screen″ (800x 480p) and the ability to send messages to speaker zones, individually or in groups, by means of forty programmable keys.

Other features include sending live or pre-recorded messages, the control of the musical program, with input selection and zone assignment or system monitoring.

In a Nova system they can be connected Until 32 Remote microphone desks, both this model and Nova-12RM (with twelve keys), with a communication distance of up to 600 Meters, and include two RJ-45 connectors for input and output connections.

The communication bus between desks and amplifiers can be closed in a loop as an additional safety measure, avoiding possible disconnection errors.

SiP exponential speaker

In addition, Optimus has incorporated the model into its offer AE-15SIP, an exponential circular mouth speaker, internal amplifier of 15 W, an RJ45 port and a network interface 10/100 Base-TX.

The power is through PoE and the technology is VoIP with SIP protocol, making it easy to integrate into a data network and broadcast messages from SIP phones or any other device connected to the network that uses the same protocol.

Internally it incorporates a power stage of 15 W and the speaker and stage set has a response in frequency of 400 To 8.000 Hz, a sensitivity of 101 Db (1 W, 1 M, 1 Khz) and a maximum sound pressure of 113 Db (15 W, 1 M, 1 Khz).

Optimus AE-15SIP, of 230 mm long with a mouth of 200 mm in diameter, includes a U-type adjustable bracket finished in steel for easy installation on both ceiling and wall.

The enclosure of the speaker is waterproof ABS with a degree of IP67 protection for installation in more adverse weather conditions, since dust does not enter and support, without any filtration, full immersion at one meter for thirty minutes.
