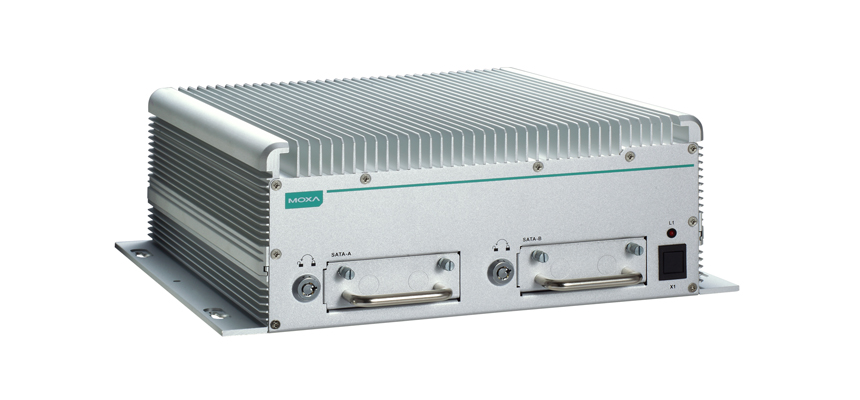

Moxa MXNVR-RO-T: NVR for video surveillance applications in the railway environment

Equipped with the versatility and robustness needed to operate reliably in on-board surveillance applications, this computer, designed with a robust housing, incorporates the Intel i7-3517UE processor. Can connect to multiple IP cameras for real-time viewing at resolutions up to 1080p at 450 fps and allows you to record images or view them live.

The MXNVR-RO-T is a network video recorder (Nvr) of an industrial type that Moxa has been designed to be used in train surveillance applications. Built with a robust housing and optimized performance, This on-board surveillance equipment incorporates the Intel i7-3517UE processor and a powerful software designed both to record images and to view live.

The MXNVR-RO-T can connect to multiple IP cameras for real-time viewing at 720p (1.280×720) and speeds up to 120 fps for 1/4 cameras, although it can also record at 1080p (1.920×1.080) To 450 Fps.

To ensure its suitability for use on trains, The MXNVR-RO-T is equipped with an easy-to-use 'Driver View' interface for viewing video images and camera status, be able to identify problems and react as quickly as possible. The accuracy and security of a recorded file is often one of the highest priorities in mission-critical applications., this is why this nvr incorporates a digital signature protection mechanism that is activated when a video stream is recorded.

The MXNVR-RO-T operates with temperatures ranging from -40 And 70 ℃. Lacks fan or heater and is protected against power surges. It is also compatible with the essential sections of the EN standard 50155 standard for material applications used in railways. These industrial-quality features give this equipment the versatility and robustness needed to operate reliably in demanding on-board applications..
