Aceros del Toro protects your facilities with a Vivotek-based IP video surveillance network

To offer complete coverage they have been installed outside 15 IP8362 cameras, responsible for covering an area of more than two thousand square meters, while in the offices they have been arranged 10 IP8335H equipment. Other solutions, as the FD8335H and SD8313E dome and the IB8367 bullet type have been used for the warehouse and guardhouses.

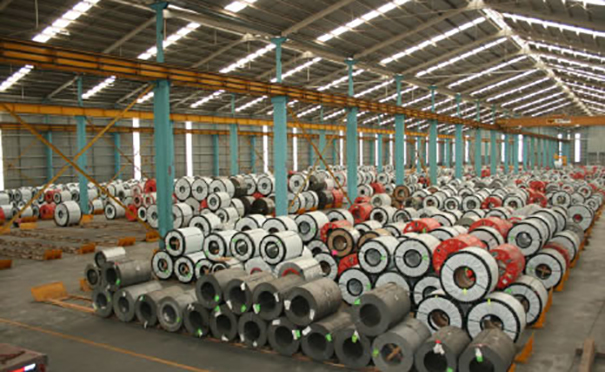

With a history that goes back to 1978, Aceros del Toro has become one of the main suppliers to Mexico and the United States. With branches in Mexico City, Guadalajara and Celaya, The company has diversified and has four divisions focused on steel, Logistics, Forklifts and Manufacturing.

In order to ensure reliability and security in its manufacturing plants and offices decided to implement an IP video surveillance infrastructure. A project that has been carried out hand in hand with the company Novolan Computers and Networks using the technology of Vivotek.

The project proposed a wide area to cover, including indoor and outdoor spaces, Manufacturing areas, Offices and surveillance booths. To respond to all the needs of the company, Vivotek supplied a solution composed of 40 Full HD cameras integrated into an IP video surveillance network.

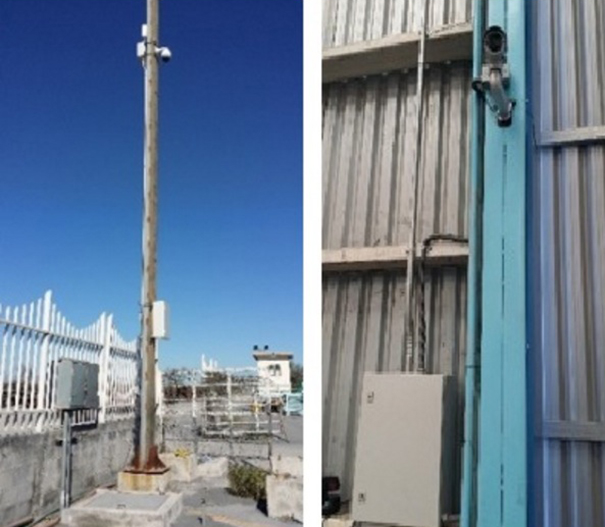

In the outdoor areas of the facilities have been installed 15 IP8362 bullet type equipment in order to cover an area of more than two thousand square meters.

This camera offers Full HD resolution in 16:9 and offers WDR functionality, providing sharp images in both Mexico's bright sun and darkness at night. In addition, its IP67 housing protects it against rain and dust, guaranteeing its operation in all weather conditions, which is very appropriate given the area where the facilities of Aceros del Toro are located.

For the areas of the offices, the implementation of 10 IP8335H cameras, A team that is capable of producing clear images regardless of the lighting conditions of the room. With a bullet format, has a CMOS HD WDR sensor and the WDR Pro function allows you to capture the light and dark parts. It also has a P-iris lens that makes it ideal for monitoring corridors and offices where natural and artificial light mix..

For guardhouses, has opted for the installation of fixed dome cameras FD8335H, given its audio recording capability and compatibility with door metal detectors. And on the outside of these cabins have been implanted two domes SD8313E, as they offer wide coverage and provide high-resolution images. These are used to monitor the areas of access to the interior.

Finally,, two IB8367 bullet network cameras have been located inside and outside the warehouse. This team of 2 MP is ideal for long-range surveillance applications, and are equipped with Smart IR.

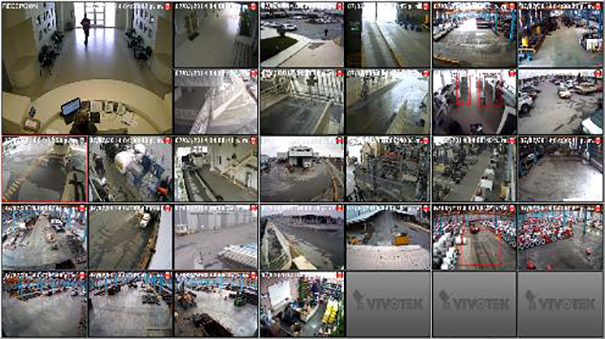

Moreover, the footage of the network cameras of 8 channels are registered in a recorder ND8321 and the entire system is connected through the Vivotek Vast software.
