Bosch creates network evacuation solution for St. Petersburg Expoforum

The networked public address solution designed by Bosch for the St. Petersburg trade fair, that integrates with the existing complex global security system, Serves as a voice evacuation system in case of emergency.

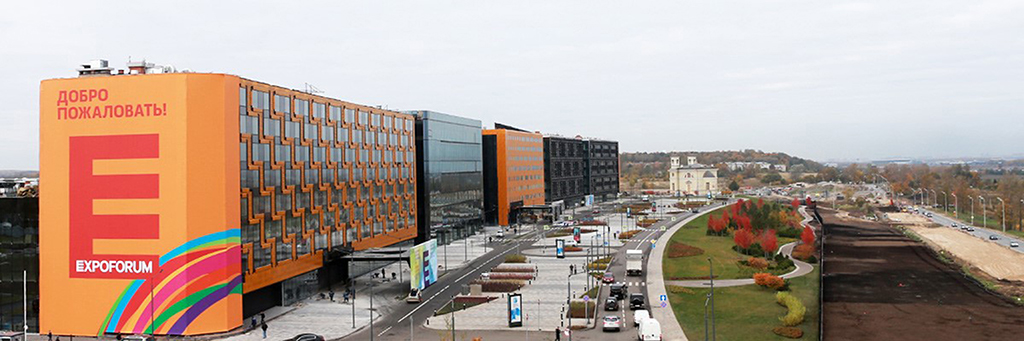

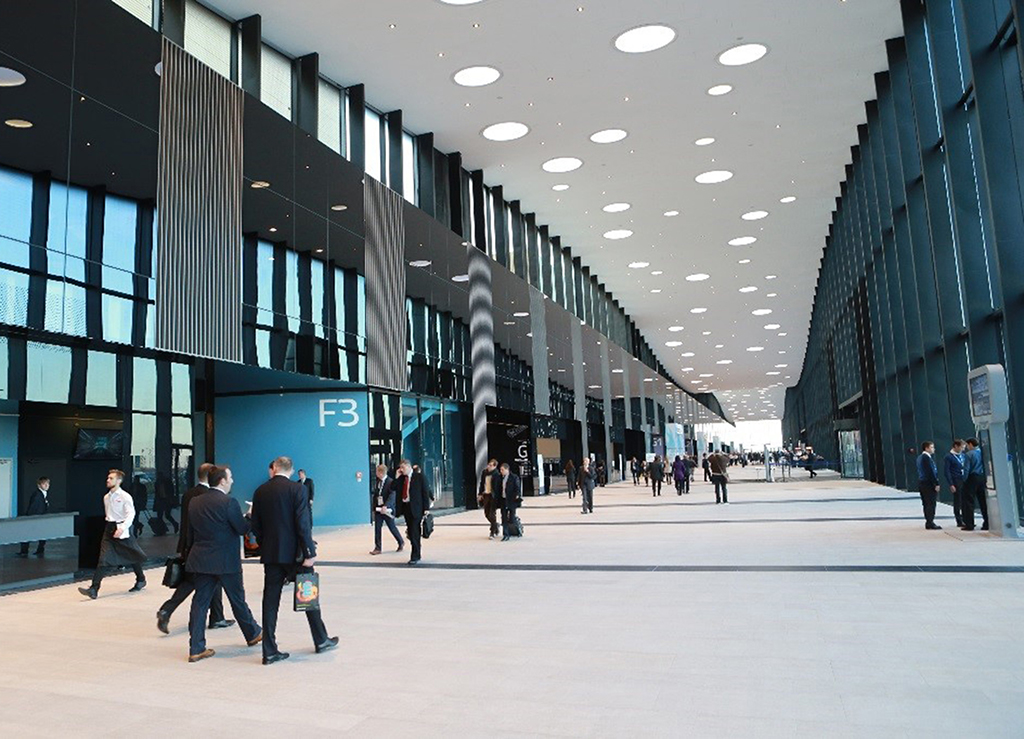

Expoforum is a modern exhibition space, Conventions & Forums, where cultural and sporting events are also held. In its first stage, inaugurated in 2014, The enclosure presents three exhibition pavilions, with a total of 40.000 square meters of covered exhibition space, a conference center, Two hotels, a business center and customs service, as well as outdoor and underground car parks. In a second phase, additional pavilions and car parks will be built..

Expoforum operators needed a multi-zone public address system that covered all common areas, including exhibition halls, The Convention Center and outdoor areas. It had to be suitable for making public announcements and broadcasting background music in normal situations., while serving as a voice evacuation system in case of emergency.

The solution had to respond to the needs of the exhibition halls, the outdoor areas and the convention center, ensuring perfect intelligibility throughout the venue. Another important requirement was that it be integrated with the existing complex global security system..

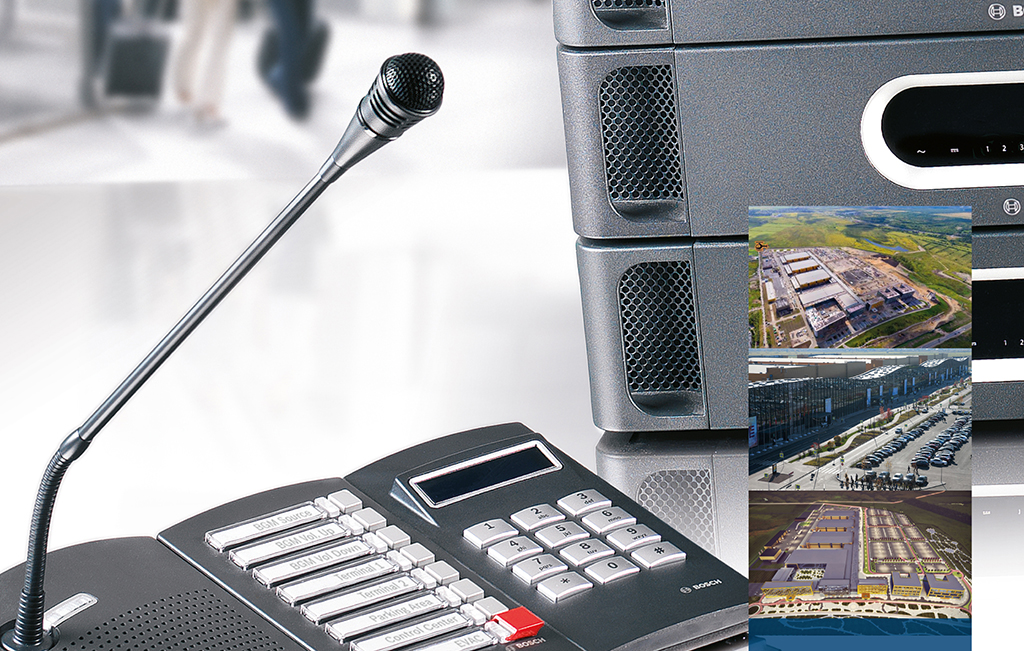

Based on the Praesideo digital system, Bosch has designed a networked solution with eight controllers, A 90 power amplifiers and more than 2.500 Speakers, that allow a very specific distribution of sound and messages.

All components are networked via TCP/IP for audio and control data transmission. Due to the tight integration of all subsystems, The solution can be easily configured and managed remotely from multiple operator stations. In addition to standard password protection, The public address system is also secured against unauthorized connections from external devices, making it highly resistant to tampering.

The speakers chosen for this project are of the type used for evacuations and have an EN54-24 certificate.. The operating status and connections are continuously monitored to ensure the availability of the solution.

Although the Praesideo solution covers the current infrastructure, It is intended to be expanded at the same time as the exhibition center. Due to its modular and flexible architecture, The solution can easily be extended to include additional pavilions as they are added without modifying the basic design of the solution.
