AG Neovo incorporates 3G SDI capability into its HX-22 monitor for critical security environments

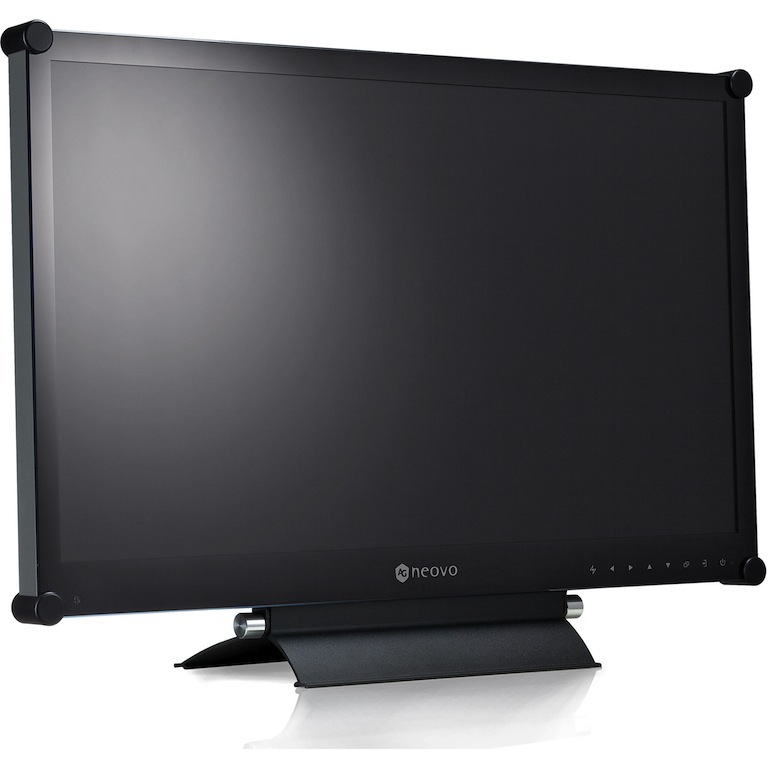

Chinese manufacturer AG Neovo's new addition to its HX display series is the HX-22 high-performance Full HD monitor, designed specifically for high-performance critical security environments, with 3G SDI capability.

The HX-22 monitor AG Neovo is part of the company's HX series, so far composed of models of 42, 32 And 24 inches developed for HD-SI surveillance applications, to which it is now added is in the format of 22 Inch, with Full HD resolution (1.920×1.080Q).

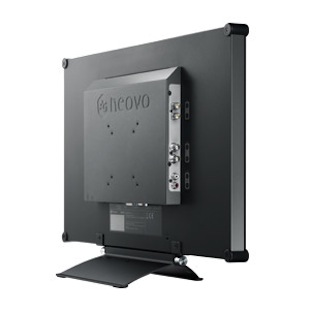

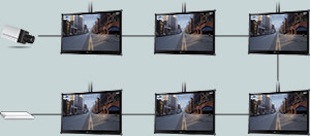

This system equips backlit Led display and NeoV hardened optical glass to withstand harsh environments 24×7, as well as SDI input and output with the ability to loop with the signal for delivering high definition images directly and in real time from HD-SDI devices (about a maximum of 100 meters by coaxial cable), without interrupting the signal or there is a delay in video transmission and with maximum fidelity to the original signals.

3G SDI capability supports 3Gb/s; 1,5 GB/s HD and SD SDI video input. In addition to receiving megapixel images directly from HD-SDI, this display also can accommodate up to eight audio channels 48 Khz.

Like all other HX series monitors, this new model features the robust neoV optical glass protection for multi-user environments, expressly designed and tested for security and surveillance applications. Added to this is the anti-burn-in technology of this company, trying to solve the aging 'ghost images', also known as image retention.

Aged images occur when still images are displayed on the screen for extended periods of time, causing the polarization of the liquid crystal material contained within the TFT LCD panel. Anti-Burn-in technology extends the life of this manufacturer's displays in critical applications, to provide uninterrupted visualization and continuous operation.

As Debbie Deng explains, AG Neovo product manager, "HD CCTV monitoring is already essential in the security industry and HD-SDI integration has been perceived by the market as a standard feature in viewing. Through an integrated SDI input/output interface, The HX-22 monitor is specially designed for a wide variety of high-performance professional applications where clarity and latency are vital.”

The HX-22 monitor incorporates the EcoSmart sensor, automatically adjusts the backlight according to ambient lighting conditions and screen brightness to optimize energy efficiency.
