Vivotek NR8401, new generation of recorders for network video surveillance infrastructures

Vivotek's NR8401 NVR is designed to be rack mounted, supporting the connection of video surveillance cameras up to 16 Channels. It is scalable and allows remote management via web.

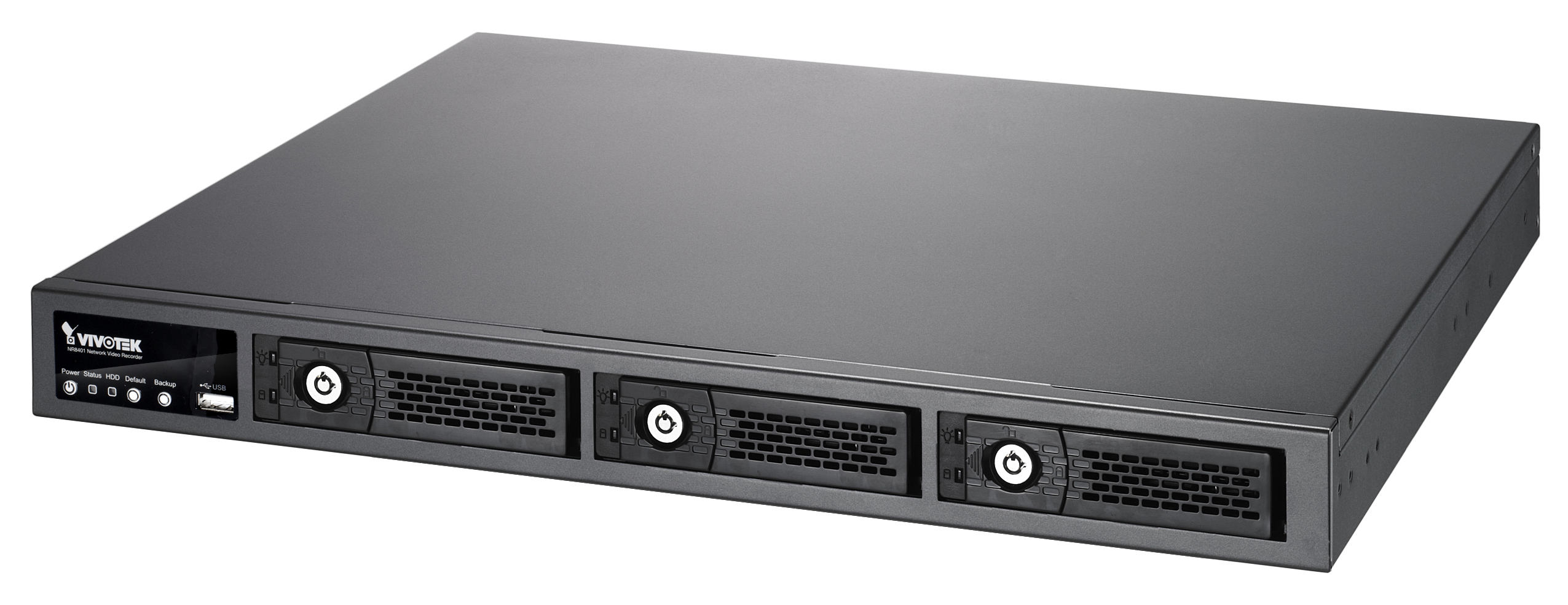

The network video recorder (Network Video Recorder -NVR) NR8401 by Vivotek allows rack mounting of 16 Linux channels. Operates independently of a PC, providing a stable and efficient recording system, with a wide range of functionalities for network management and configuration systems. This equipment is compatible with all Vivotek network video surveillance cameras.

Unlike traditional DVRs, an NVR can connect directly to other network devices over the Internet. The Vivotek NR8401 system is an improved version of previous NVR products that can not only be connected directly with Vivotek's Vast management software, it is also compatible with the iViewer app, allowing remote access to the device via handheld devices.

Real-time monitoring, data recording and management can be performed simultaneously via the web browser interface. In addition, the NR8401 is equipped with dewarp web console functionality and supports 1O dewarping modes, 1P and 1R for fisheye chambers.

NR8401 NVR incorporates two RJ45 Gigabit Ethernet ports and offers multiple network configuration modes to avoid the risk of information loss, including standalone mode, failover and load balancing.

To facilitate backup processes, on the front panel there is a button that with a single touch allows you to save the information or restore settings. The storage capacity of the NVR can be expanded to a maximum of 12 TB through four hard drives. Supports RAID 0/1/5 for video data protection and duplication. Designed with DI/DO features, external sensors or alarms can be added to a security solution.
