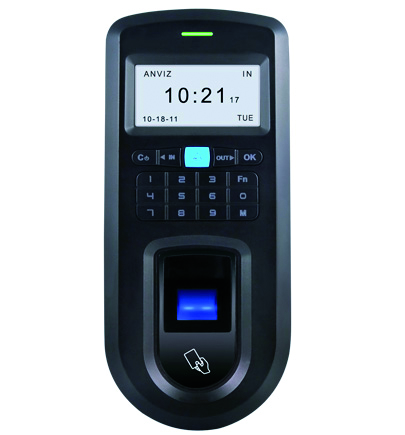

Anvif VF-30: biometric access control with optical fingerprint sensor

Anvif's VF-30 biometric access control, firm represented in Spain by Euroma Telecom, incorporates an optical fingerprint sensor (AFOS300) with a resolution of 500 Dpi.

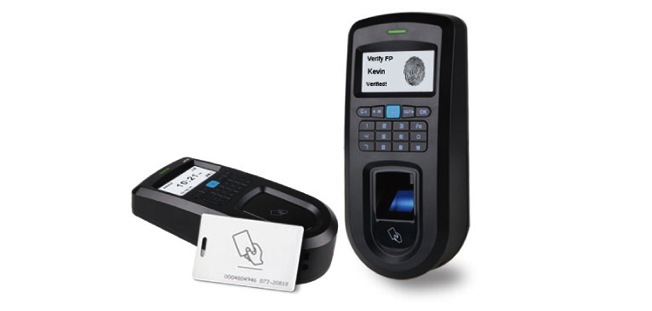

The VF-30 Anvif, available in Spain through Euroma Telecom, has an RFID card receiver (HID and Mifare and HID systems are optional) and a keyboard (with ten number keys and feels programmable) so that the user's identification can also be done with the combination of these elements according to the desired level of security.

With the ability to store 50.000 Records, accessible via the built-in USB port or via TCP/IP, the system equips a processor 32 ARM MCU bits with proprietary algorithm to memorize up 2.000 footprints and 2.000 RFID cards, with an identification time of less than 0,5 Sec. and an FRR error rate of 0,001%.

Anvif VF-30 offers the possibility to manage groups with different programmable time schedules, as well as sending up to fifty short messages.

The system has a direct exit for door opening, as well as alarm tamper signal and can interface with other devices with Wiegand input/output.

Thanks to its TCP/IP connection and included software, VF-30 can perform both access control and time control functions.
