Moxa introduces VPort P06-1MP-M12, a compact HD IP camera for mobile apps

The manufacturer of safety devices for connectivity for transport, Moxa, has incorporated to its wide range of network solutions the compact HD IP camera VPort P06-1MP-M12, that has an EN certificate 50155 for IP video surveillance applications in vehicles.

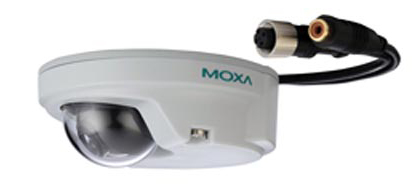

Moxa announced the launch of the VPort P06-1MP-M12, a compact HD IP camera with EN certificate 50155 designed for mobile and IP surveillance applications on the move. The camera is particularly suitable for vehicle applications with limited installation space. The rugged VPort P06-1MP-M12 features a wide operating temperature of -40 at 75°C, vibration-resistant M12 connectors, DESIGN EN 62262 Vandalism-proof IK10, audio input, PoE power input, and IP66 protection against rain and dust. Moxa's Dynastream technology has support to optimize network performance with dynamic bandwidth management.

Superior image quality

The VPort P06-1MP-M12 is equipped with a state-of-the-art CMOS sensor that delivers excellent high-resolution video images at 1280×800 Pixels, and covers larger areas than analog cameras. With the addition of DNR functions (Digital Noise Reduction), Blc (Black Level Control), and WDR (Wide Dynamic Range), VPort P06-1MP-M12 provides a clear picture of the surveillance area.

Robust design for mobile apps

The 47 Mm. VPort P06-1MP-M12's high-pitched vehicle environments with limited installation space. También es compatible con las secciones esenciales de temperaturas EN 50155, T1 (standard model) and TX (wide temperature model), as well as EMC shock and vibration criteria (in 50121-3-2) and EN 61373. The camera takes advantage of Moxa's unique thermal technology, allowing the wide temperature model to withstand temperatures between -40 and 75°C, no need for a fan or other cooling equipment, and the built-in M12 connector provides a secure Ethernet connection for high vibration and shock applications. This combination of industrial-grade features enables the VPort P06-1MP-M12 to provide reliable video streams for mobile IP video surveillance applications..

With a tempered glass lens, VPort P06-1MP-M12 achieves IEC housing protection 62262 Class IK8 and IP66 protection against rain and dust. Also supports 802.3af PoE (Power over Ethernet), eliminating the need to install additional and external electrical cables, and in doing so reduces the risk of power failures and Internet disconnections.

High-performance video

The VPort P06-1MP-M12 supports a maximum of two simultaneous H.264 video signals and one MJPEG. Operators can assign each individual flow a specific purpose: For example, an H.264 stream for live video viewing, and an MJPEG flow for data storage. With Moxa's Dynastream technology , operators can optimize bandwidth by automatically reducing or increasing the speed of video frames in response to events. Responding dynamically to networked events, Dynastream avoids network congestion to help operators control network bandwidth and simplify network system management.
